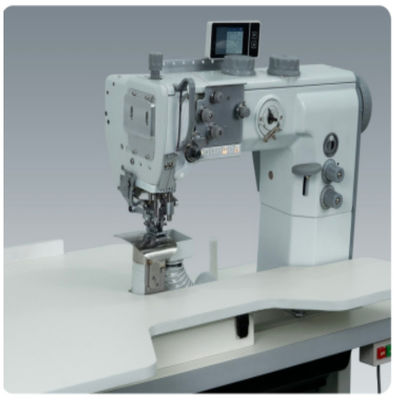

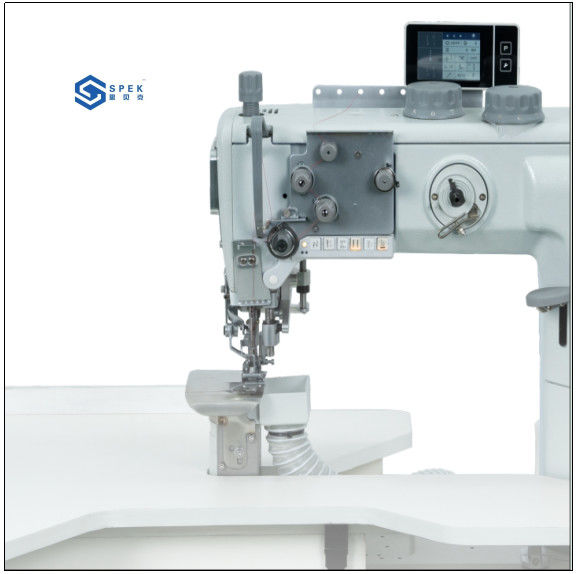

Computerized attaching shoulder pads to armholes and trimming edge sewing machine

The specialists for finishing armholes

The machines 688 perfectly round off the  sleeve production.

The 688 sllows the attaching and simultaneous trimming of the body lining and shoulder pads

The workstation are characterized by their ergonomically optimized workplace design. In the gripping area of hte operator, a 6-function key bar for quick access is located. The knee switch is  used to call preseted modes for  activating the stitch loosening. second stitch length and second foot stroke. The shaped table top offers maximum comfort of  operation for the processing og large parts. For productions in shift work. height-adjustabel stand set is recommended. which improbes theh ergonomics for different operators .

 Advantages:

• Programmable, automatic material thickness detection with two values within on shouleder  pad
• Knee switch for manuall activating  the stitch loosening device, the 2rd stitch length and 2nd foot stroke
• Switchable 2rd thread tension , 2rd stitch length and the 2nd foot strok and 2rd stitch length for the adaptation of  the machine to the different  material thicknes
• Secured sewing start with low thread tension by means of 2rd thread tension and stitch condensing
• Switchable fulness in the upper or lower material ply by push-button
• Integrated  6-function key bar with ergonomically arranged favourite key for quick access
• Max 9mm stitch length (depending on the sewing equipment)
• Large three-piece vertical hook (28 mm) with 60% higher bobbin thread capacity enables a reduced bobbin change
• Automatic winding aid for clean and safe bobbin winding
• Integrated LED light as standard
• Max.sewing speed of 1.800 stitches/min (the maximum number of stitches depends on the use of stitch loosening device)
• Automatically or manually seitchabel stitch loosening device for a "soft" shoulder pad
• Stitch loosening ginger(long and short version) to adapt the thread quantity to the thickness of the shoulder pad

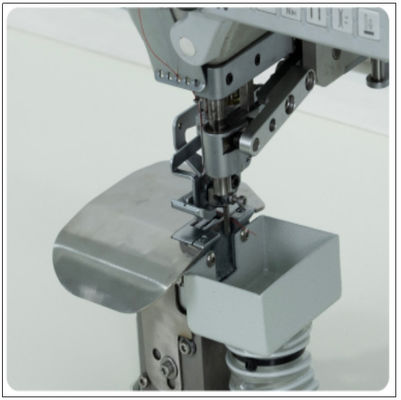

• Edge trimmer for perfectlu grimed excess lengths of lining and shoulder pads
• Slide-on tabel to improve  the handing of the material
• Pneumatic sewing foot lift
• Equipped with an electric vacuum cleaner always keep the workbench clean
